Robotics Data Annotation vs Traditional ML Labeling: What Actually Changes

Robotics teams are not labeling more data. They label a different definition of truth.

Traditional ML labeling is usually built around a simple assumption: one sample (an image, a text snippet, or an audio clip) maps cleanly to one label (a class, a bounding box, or a tag). These pipelines were designed for static prediction tasks, where inputs are treated as independent observations, outcomes are evaluated offline, and errors primarily degrade accuracy metrics.

Robotics breaks this assumption at a fundamental level.

Robotics models do not merely interpret data. They act on it across time and sensors, in 3D space, and under real safety constraints. A robot's predictions are not endpoints; they are inputs to physical behavior. As a result, robotics annotation exists to support physical action, temporal continuity, and safety-critical decision-making.

This shift invalidates many assumptions embedded in conventional ML labeling pipelines. Samples are no longer independent, labels cannot be evaluated frame-by-frame, time can no longer be treated as optional metadata, and annotation errors not only degrade performance, but also introduce risk.

This article does not re-teach labeling basics. Instead, it focuses on what actually changes when you move from conventional ML labeling to robotics data annotation in production, and why those changes force teams to rethink what "ground truth" really means.

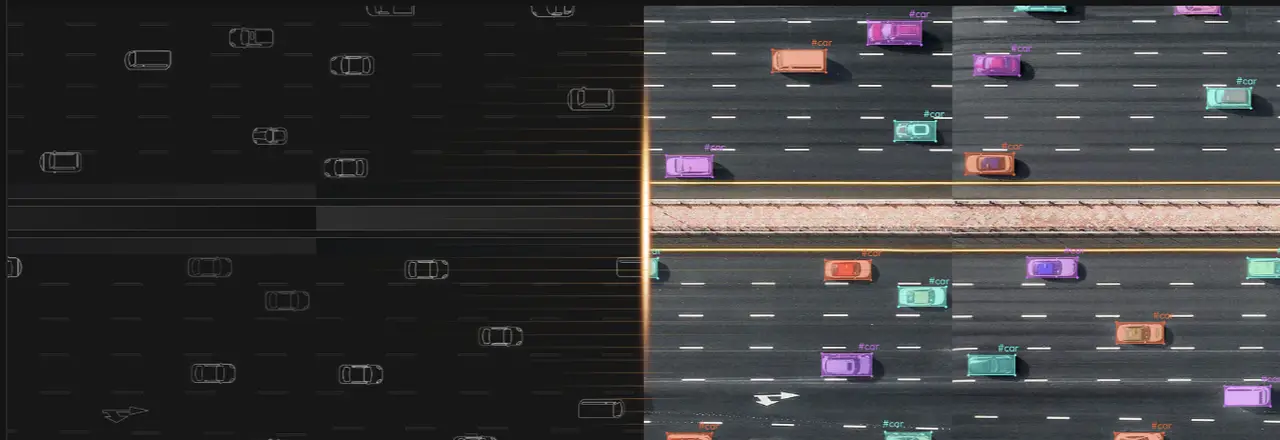

4D Annotation Enables Consistent Perception for Robotic Action Over Time (Source: Abaka AI) [1]

What Changes First: What Is the Unit of Ground Truth?

In traditional ML, the unit of ground truth is usually a single sample: one image, one sentence, or an audio clip. Datasets are shuffled, randomly sampled, and treated as largely independent.

Robotics annotations, however, do not learn from isolated samples. They learn from scenes unfolding over time, where meaning arises from continuity, interaction, and outcome. An object's identity matters not just in one frame, but across many frames and time. Similarly, actions are not defined by appearance alone, but by transitions from approach, to contact, to manipulation, and finally release.

As a result, the unit of annotation shifts fundamentally from:

Frame -> Scenes
Sample -> Sequences
Static Labels -> Episodes of interaction

Unlike image classification, a single mislabeled frame can invalidate an entire trajectory, damage state transitions, or skew learning signals for control and planning in robotics. Operationally, this forces teams to design annotation guidelines around episodes, perform QA at the sequence level, and treat temporal continuity as a correctness constraint rather than a convenience.

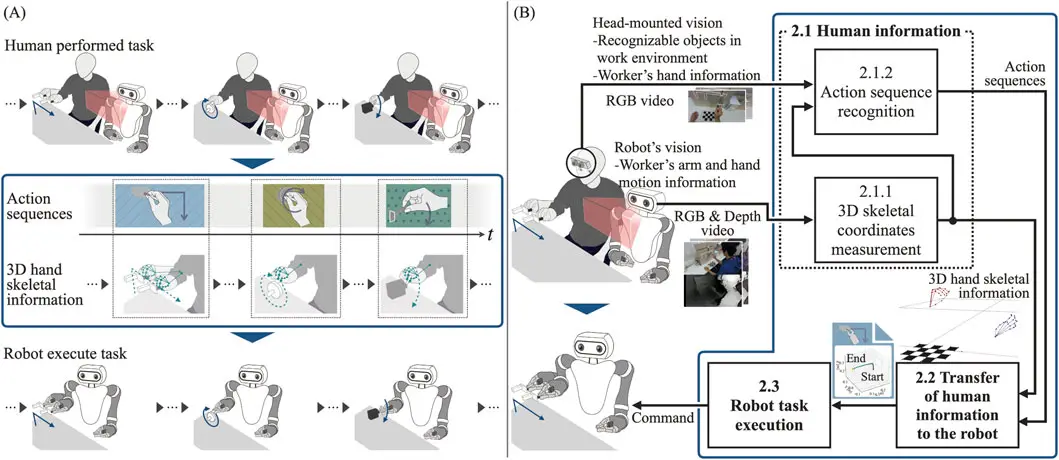

Translating Human Information into Robot Tasks System (Source: frontiers) [2]

Why Does Time Become a First-Class Label Dimension?

In many ML pipelines, time is treated as secondary metadata. In robotics, time becomes part of the label itself.

Robotics annotation must explicitly encode when an action begins and ends, how long states persist, whether transitions are valid, and whether cause precedes effect rather than the reverse. This is especially critical for learning from demonstrations, RL from logs, and post-deployment failure analysis.

Grasp validity is defined by its physical outcome over time, not by how it appears in one frame. As a result, annotation accuracy is no longer defined by visual precision alone. It is defined by temporal coherence. Object identities must remain consistent, actions must progress logically, transitions must be consistent with causality, and annotations must reflect motion rather than snapshots.

This is why robotics labeling tools emphasize interpolation, propagation, and timeline-aware editing, and why QA must review motion and behavior, not just isolated frames.

Infographic of Humanoid Robots Evolution (Source: Brian D. Colwell) [3]

How Does Multi-Sensor Data Redefine Labeling?

Traditional ML labeling often assumes one dominant modality at a time. Robotics systems almost never operate this way.

Robots perceive the physical world through sensor fusion:

RGB cameras provide texture and semantics
LiDAR or depth sensors provide geometry
IMUs and joint encoders provide motion
Force and tactile sensors provide physical interaction

Robotics annotation therefore involves two coupled problems: labeling each modality correctly, and ensuring that all modalities describe the same physical event at the same moment. The second problem is where traditional pipelines fail.

Misaligned timestamps, calibration drifts, sensor lags, or inconsistent coordinate frames can all produce labels that are individually "correct" yet collectively illogical and incorrect. In robotics, labeling cannot be separated from alignment, synchronization, and calibration validation. QA must answer not only label accuracy, but also consistency across sensors in time and space.

Why Does 3D Annotation Change the Meaning of Accuracy?

In conventional 2D ML tasks, annotation accuracy often means tight boxes or clean masks. Robotics introduces geometric and physical correctness as a strict constraint.

Robotics annotation must adhere to depth, scale, orientation, pose, and physical feasibility. A label can be perfectly valid and operational in 2D but physically impossible in 3D. For example, a bounding box that floats above the ground plane or intersects solid geometry may look acceptable on screen, but it can break downstream planning and control.

Consequently, many robotics pipelines invert the traditional workflow. Labels are created in 3D first, then projected into 2D views, with spatial consistency enforced as a primary constraint. Accuracy in robotics annotation is therefore about physical truth, not visual neatness.

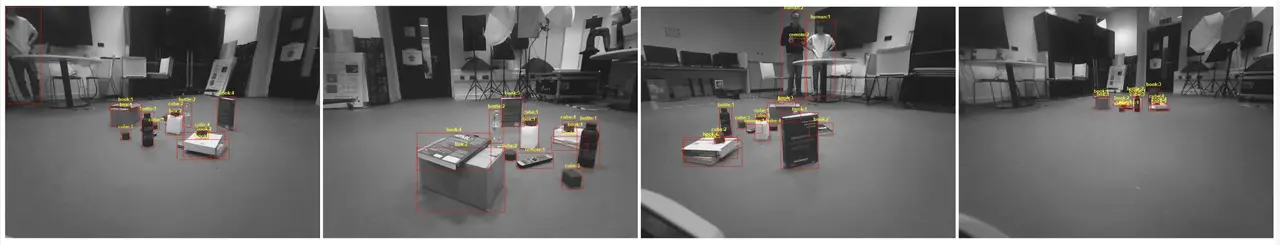

Robotics Spatial Awareness Annotation (Source: Wang et al, 2025) [4]

Why Do Edge Cases Become a Safety Requirement?

In many ML systems, long-tail data improves robustness. In robotics, long-tail scenarios define risk.

Edge cases are not rare inconveniences; they are situations where systems fail. These include occlusion and clutter, reflective or transparent surfaces, adverse lighting and weather, sensor dropouts, unexpected human behavior, and physical interaction failures such as slips, deformations, or collisions.

Since failures in robotics have physical consequences, and not just an abstract concept, data strategy changes fundamentally. Where it was just random sampling, robotics teams now prioritize failure-driven data collection, post-deployment log mining, and targeted annotation of breakdown scenarios. Annotation becomes an exercise in defining safety boundaries, not a statistical optimization problem.

How Does Quality Assurance Shift in Robotics Annotation?

Traditional QA focuses on label correctness and agreement between annotators. Robotics QA goes beyond that, ensuring system-level reliability.

This includes verifying temporal continuity, cross-sensor consistency, calibration assumptions, action outcome, and dataset lineage.

Robotics QA typically operates in layers:

Automated checks for format, timing, and geometry
Human review for ambiguity
Domain expert audits for safety-critical sequences

Labeling quality becomes inseparable from operational trust.

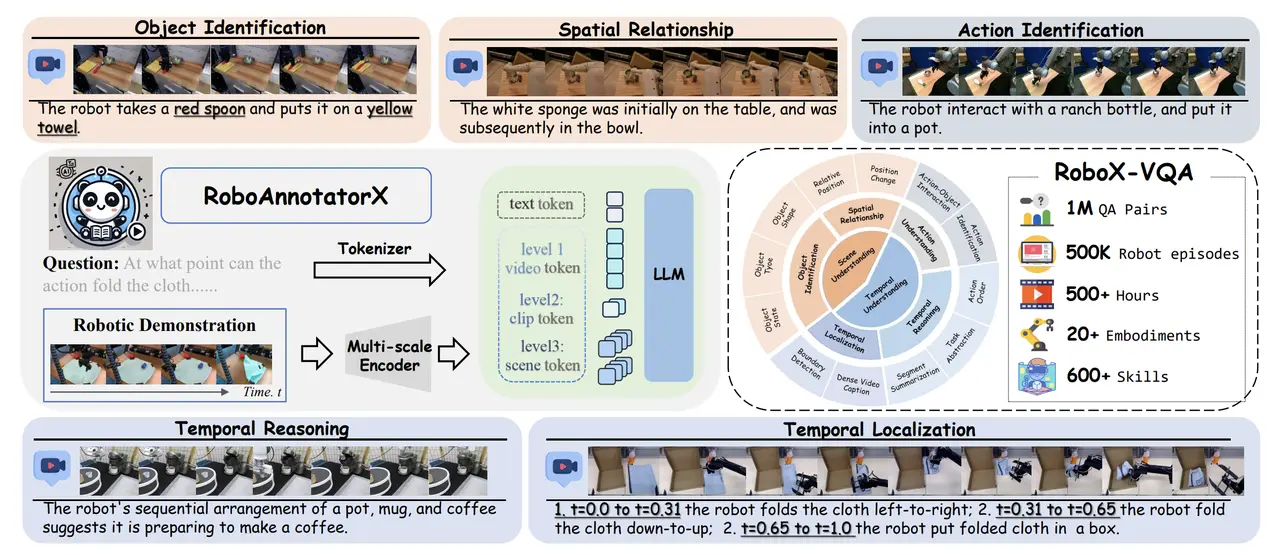

RoboAnnotatorX - Automated Annotation Framework (Source: Kou et al, 2025) [5]

Why Does Model-Assisted Labeling Behave Differently in Robotics?

Unlike traditional ML pre-labeling, where precision is often prioritized to minimize cleanup work, robotics annotation prefers high recall. This is because removing a false positive is faster than discovering a missing critical object. More importantly, missing interactions or obstacles can be dangerous.

Robotics labeling models are also allowed to behave differently. They can be slow, look ahead across sequences, and optimize for editability rather than inference speed.

Automation in robotics annotation is judged not by how clean its outputs look, but by how effectively it supports human correction.

Where Is Robotics Data Annotation Headed Next?

Robotics annotation is evolving from manual drawing into structured supervision. Future pipelines will emphasize task- and state-level labels rather than object-only labels, 3D-first workflows with automatic 2D projection, generative assistance for dense segmentation and temporal smoothing, evaluation-driven annotation loops based on deployment failures, and stronger governance, auditability, and dataset lineage by default.

Annotation is no longer a preparation step. It is becoming a continuous infrastructure that connects perception, control, evaluation, and deployment.

Key Takeaways

Robotics annotation changes the unit, dimensions, and cost of ground truth
Time, geometry, and sensor alignment become first-class constraints
QA shifts from correctness to operational reliability
Edge cases define safety, not just performance
The future of robotics annotation is structured, evaluative, and continuous

FAQs

1. Can robotics data annotation be reused across different robot platforms?

Not directly. While some perception labels, such as object classes or basic geometry, may transfer, most robotics annotations are tightly coupled to sensor configuration, calibration, embodiment, and task context. Differences in camera placement, actuator dynamics, or control policies can invalidate otherwise "correct" labels. Reuse typically requires re-alignment, re-validation, and often re-annotation at the sequence or task level.

2. Is robotics annotation always more expensive than traditional ML labeling?

Not necessarily per label, but it is generally more expensive per unit of operationally valid ground truth. Robotics annotation often reduces the total number of samples by focusing on sequences, failures, and safety-critical episodes rather than large volumes of independent frames. The cost reflects higher complexity, domain expertise, and QA depth; not scale alone.

3. Can simulation replace real-world robotics annotation?

Simulation can accelerate early development and generate controlled variations, but it cannot fully replace real-world annotation. Simulation-to-real gaps in sensor noise, contact dynamics, material properties, and human behavior mean that real-world data is still required to validate physical outcomes and failure modes. In practice, simulation and real-world annotation are complementary, not interchangeable.

4. How do robotics teams decide what not to annotate?

Unlike traditional datasets that aim for broad coverage, robotics teams often annotate selectively. Decisions are driven by failure analysis, safety impact, and learning value rather than dataset completeness. Logs are filtered to identify sequences where perception, planning, or control breaks down, and annotation effort is concentrated there.

5. Does better annotation always lead to safer robots?

Improved annotation is necessary but not sufficient. High-quality labels enable better learning signals, but safety also depends on model architecture, control logic, validation procedures, and deployment monitoring. Robotics annotation defines the boundaries of what the system can learn from, but safety emerges from how those signals are integrated across the entire stack.
